Quick Details
- Place of Origin:Japan
- Brand Name:Yokogawa
- Model Number:YTA110
- Usage:Industrial
- Theory:Temperature Transmitter
- Accuracy:YTA110: ±0.1% of span
- Performance:Outstanding performance
- Reliability:High reliability
- Certification:SIL Certification
- Variety of sensor inputs:Thermocouples, RTDs, ohms, or DC milivolt
- Communication:Digital communication
- Function:Self-diagnostics function
- Display:LCD display with bargraph
Packaging & Delivery
| Packaging Details: | in carton or according to customer's request |
|---|
| Delivery Detail: | 2 weeks |
|---|
Specifications
Yokogawa Temperature Transmitters YTA110 YTA310/YTA320
Excellent performance and stability
Compact and light-weight design
Yokogawa Temperature Transmitters YTA110/YTA310/YTA320
Description
The YTA110 is the high performance temperature transmitter that accepts Thermocouple, RTD, ohms or DC milivolts inputs and converts it to a 4 to 20 mA DC signal for transmission.
The YTA110 supports either BRAIN or HART communication protocol.
The YTA110 in it standard configuration is certified by TU¨V as complying with SIL2 for safety requirement.
Features
High performance
Microprocesser-based sensing technology ensures long-term accuracy and high reliability.
High reliability
Dual-compartment housing realizes high resistance capability to harsh environments, and YTA110 has SIL2 capability for safety requirement.
Variety of sensor inputs
The type of sensor input is user-selectable from thermocouples (T/C), RTDs, ohms, or DC milivolts.
Digital communication
BRAIN or HART® communication protocol is avail- able. The insturment configuration can be changed by the user with using the BT200 or HART communicator.
Self-diagnostics function
Continuous self-diagnostics capability ensures long- term performance and lower cost of ownership.
LCD display with bargraph
The LCD display provides both a digital readout and percent bargraph simultaneously.
MODEL AND SUFFIX CODES
Specifications: Temperature Transmitters YTA110
| Accuracy (typical) | YTA110: ±0.1% of span
YTA310/320: ±0.05% of span |
| Cold junction Compensation accuracy | (For T/C only)
±0.5 deg C (0.9 deg F) |
| Power supply effect | ±0.005% of calibration span per volt |
| Ambient temperature effect | ±0.1%/10 deg C (YTA110) |
| Input signal | YTA110/YTA310: single input, YTA320: dual input
Input type is selectable: thermocouples, 2-, 3-, and 4-wire RTDs, ohm and DC milivolt |
| Output | Two wire 4 to 20 mA DC or FOUNDATION fieldbus signal (YTA320) |
| Supply voltage | BRAIN and HART: 10.5 to 42 V DC
(10.5 to 30 V DC for Intrinsically safe type)
Fieldbus: 9 to 32 V DC
(9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO) |
| Ambient temperature | Option code may affect limits
-40 to 85 deg C (-40 to 185 deg F)
-30 to 80 deg C (-22 to 176 deg F) with integral indicator |
| Mounting | Optional mounting bracket can be used either for two-inch pipe or flat panel mounting. |
| Weight | 1.2 kg (2.6lb) without integral indicator and mounting bracket. Integral indicator weighs 0.2kg (0.4lb). |
| Degrees of protection | IP66, IP67 and NEMA 4X |
| Certificates | CENELEC, CSA, FM, IECEx or TIIS |
| SIL Certificate | Certified by TÜV NORD in compliance with the IEC61508 SIL 2 capability for single transmitter use. |
Ordering Examples:
YTA310-DA2DB
YTA310-DA2DN
YTA310-EA2DB
YTA310-EA2DN
Why do you choose us?
1. 100% original yokogawa product, 100% quality assurance.
If you find a fake yokogawa. Please contact us without hesitation! We afford the shipment cost! We send you a new product asking zero cent!
2. Varied payment methods.
We adopt L/C, D/A, D/P, T/T, and other methods. If you can not trust us , you can choose to pay it via Aliexpress! 100% make your money safe!
Wuhan Xieyuan Automation Equipment Co., Ltd
Telephone:86-027-85583233
Mobile Phone:86-18671080257
Fax:86-027-85309780
Email：sales6@@@whxyauto.com
Skype:victordu963@@@gmail.com
Whatsapp & Viber are available
Address:6-C9,Caishen Commercial Plaza,Hankou Railway Station
Product Tags:
|
|

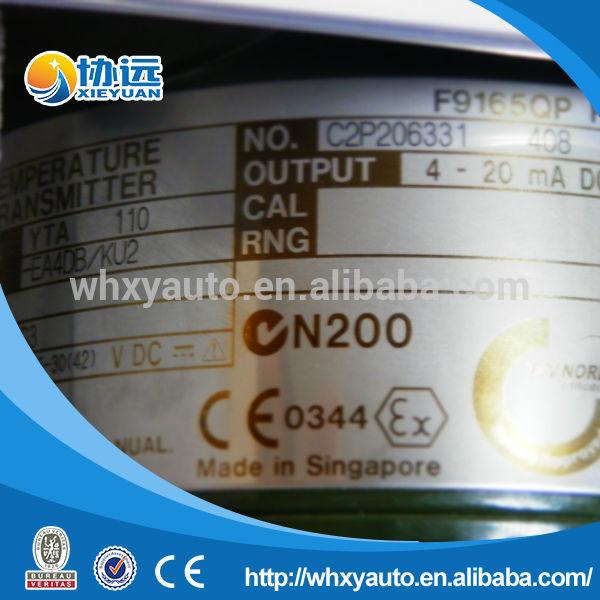

YOKOGAWA YTA110/YTA310/YTA320 Temperature Indicating Transmitter Images
|
